Automatic 26*6m cooling table for the aluminum extrusion line
Automatic 26*6m cooling table for the aluminum extrusion line

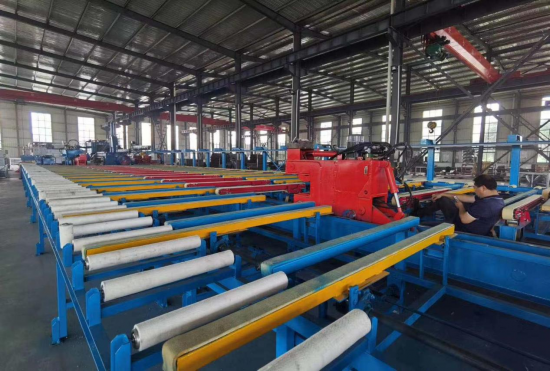

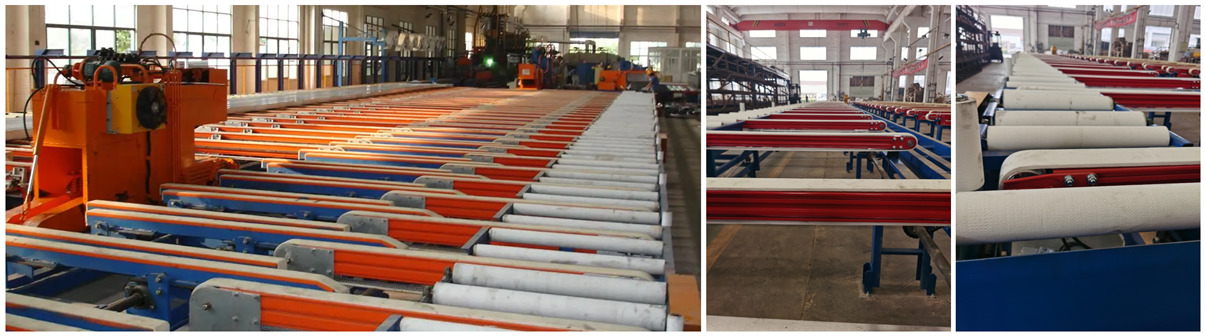

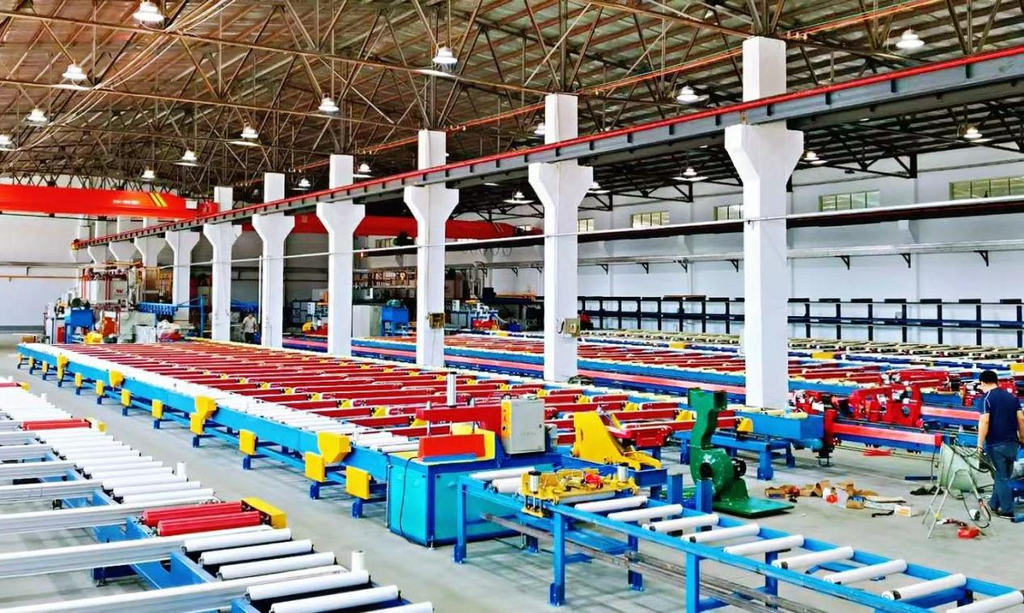

The aluminum extrusion cooling table(26*6m) is mainly used for cooling and conveying the aluminum profilewhich realizes the straightening and cutting of the aluminum material through the cooperation of the tractor, the straightening machine, the interrupting saw and so on.
Brand:
Teyun
Warranty:
1 year
Certification:
CE
Operation type:
Automatic
Material / Metal Processed:
Aluminum profiles
Voltage and frequency:
Customized
Application:
straightening and cutting of the aluminum profiles

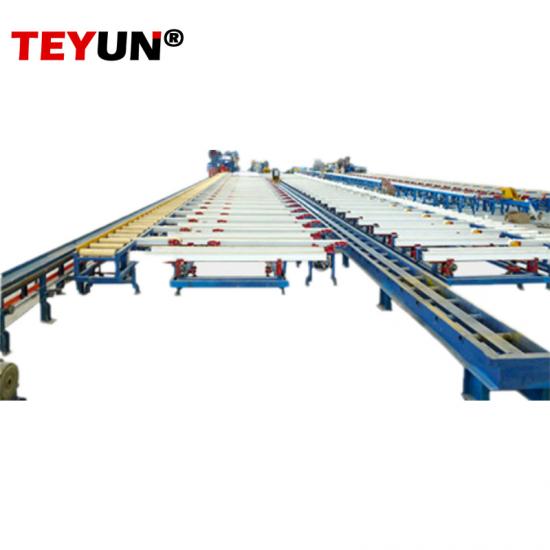

Automatic cooling table 26*6m for the aluminum extrusion line
The automatic aluminum extrusion cooling table(26*6m) is one part of the aluminum extrusion line which is mainly used for cooling and conveying the aluminum profilewhich realizes the straightening and cutting of the aluminum material through the cooperation of the tractor, the straightening machine, the interrupting saw and so on.
The automatic aluminum extrusion cooling system consists of the following parts:
1.Initial Table
The initial table is located at the discharge port, equipped with a lifting platform, which can smoothly pass the largest profile and the smallest profile. At the same time, it is equipped with 2 sets of profile clamps, which can help the discharge position of the profile to be in the center and improve the yield of the profile.
2.Run-out Table
Run-out table is made of strong profile steel.The upper part is equipped with a driven roller and the surface is covered with heat-resistant felt. The roller table can be raised and lowered vertically and driven by a hydraulic cylinder.On the basis of meeting the height difference of the lifting and lowering, the height of the lifting structure is minimized. The side plate made of the bending parts and frame reduce the failure rate and improve the aesthetics and safety. Side rollers on the outside of the roller table to prevent the profile from deviating and the side rollers can be automatically raised and lowered without interference with puller clamp.
3.Convey Table
The convey table is designed to convey profile from run-out table to cooling bed. The transmission system ensures the smooth lateral transportation of the entire device. The conveyor belt is driven by a chain and the chain is a double-row chain. The transmission belt is driven by reducers to drive the transmission shafts, which are driven by a sprocket and chain mechanism. The belt is designed with a structure to prevent belt deviation, so that the belt will run more smoothly and reliably for a long time without deviation.
4.Cooling Bed
The cooling bed is mainly responsible for the cooling of the profile. The conveyor belt is driven by a chain, and the chain is a double-row chain.It can automatically adjust the discharging distance and the profile is moved by a belt-type aluminum alloy feeding mechanism.
5.Straightening Table
The straightening machine adopts cross-stretched belt-type aluminum alloy feeding material across the bridge, equipped with a gear transmission mechanism. Its discharge spacing can be adjusted and the belt can be controlled in forward and reverse rotation.
6.Straightening Machine
The straightening machine is mainly used to stretch the aluminum profile to make it straight and obtain good straightness.The straightening machine is divided into fixed front jaws and moving rear jaws. The track base is made of steel plate and section steel welded structure. There is a steel guide rail above the base, which can withstand the force generated when it is stretched.The two straightening heads are each equipped with a hydraulic station.
Sloping with hydraulic lifting, driving high -temperature drums with a chain.
Slide the platform to adopt a high temperature drum to reduce the wear of the roller due to high temperature.
Use belt -type temperature -resistant felt to reduce the wear of aluminum materials.
The aluminum profile is shifted and transported to keep the appropriate distance between aluminum profiles.

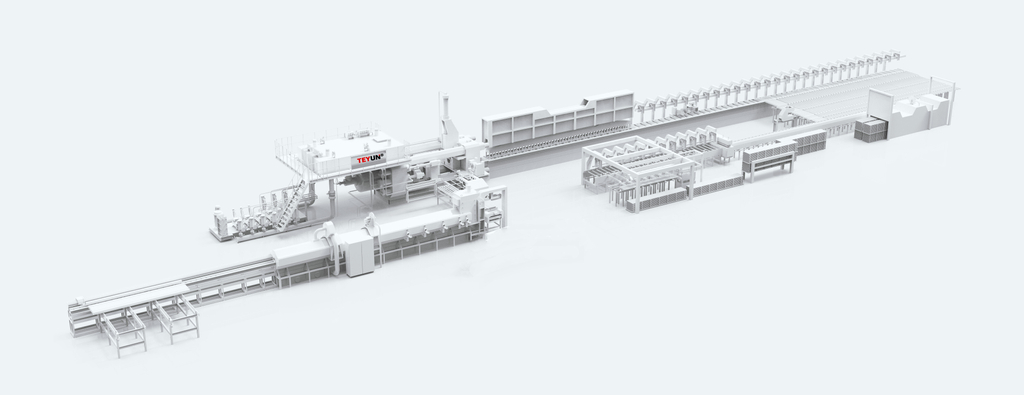

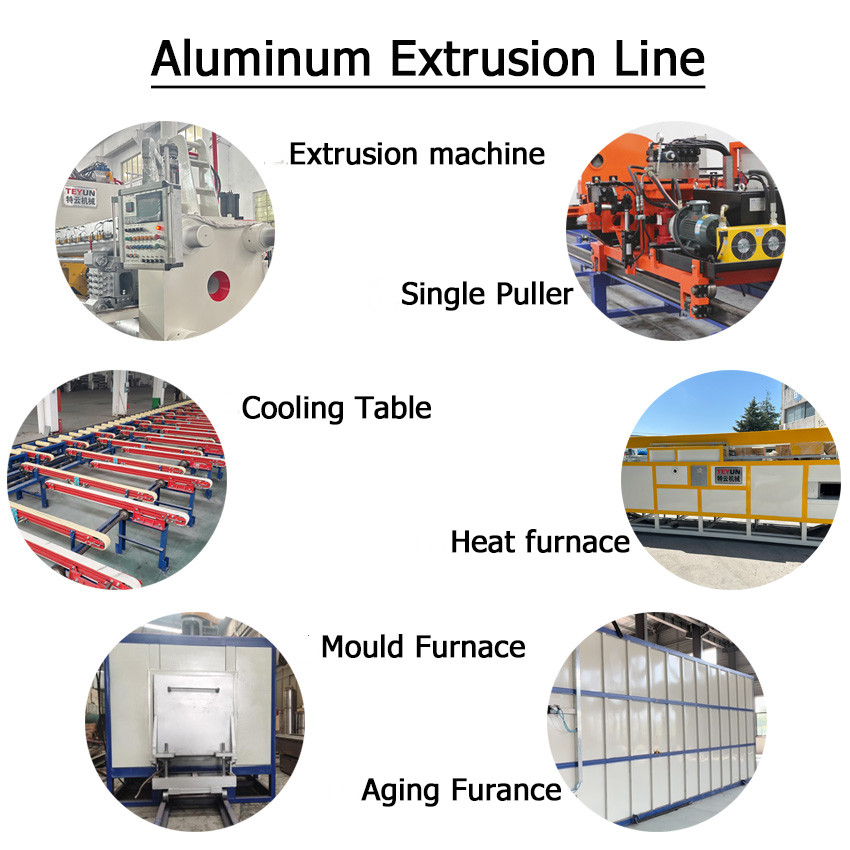

The whole line of the aluminum extrusion line consists of the aluminum extrusion main press, the puller, the automatic cooling table, the heating furance, the mold oven, the aging furance.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Alligator shear is also called crocodile shear machine, which is usuallay used for cuuting the long metal stock or scrap in the metal recycling industry.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Waste metal cutting machine for recycling The super alligator shear is also well known as the name of Tiger shear, which is mainly used in the waste metal recycling industry. The waste metal shearing machine cut the thin metal which is in the lager size or long lenth into the customized size. This cutting process can save the scrap metal storage space and the transports cost. The super alligator shear makes the metal recycling more easier. Tiger shears are suitable for scrap steel cutting, and have the advantages of large cutting opening and large blade length. There are three methods of chain plate transmission, hydraulic motor transmission, and cylinder push feeding. At the same time, the shearing speed is fast, which can reach 8~12 times per minute. There are two main types of this model, 450 type and 630 type. 1.Fully automatic PLC control, single control or continuous operation 2.Large cutting opening and large blade length 3.Lower noise and smaller volume 4.High working speed, can up to8~12t/min
Teyun shredder machine for domestic waste is especiaaly desighed for processing the solid waste generated in people's daily life, mainly including household waste, such as: industrial waste paper, waste clothes, waste shoes, textiles, municipal waste, etc.
The semi-auto horizontal baler is mainly used for compressing and baling the soft materials such as waste cartons, waste plastics, beverage bottles, straw, straw, foam, wool and cashmere, coconut palm silk and so on.
The hydraulic scrap metal container shear machines are popular in the recycling industry, usually suitable for large steel and iron company,metal recycling and consruction compies.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Alligator shear is also called crocodile shear machine, which is usuallay used for cuuting the long metal stock or scrap in the metal recycling industry.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Waste metal cutting machine for recycling The super alligator shear is also well known as the name of Tiger shear, which is mainly used in the waste metal recycling industry. The waste metal shearing machine cut the thin metal which is in the lager size or long lenth into the customized size. This cutting process can save the scrap metal storage space and the transports cost. The super alligator shear makes the metal recycling more easier. Tiger shears are suitable for scrap steel cutting, and have the advantages of large cutting opening and large blade length. There are three methods of chain plate transmission, hydraulic motor transmission, and cylinder push feeding. At the same time, the shearing speed is fast, which can reach 8~12 times per minute. There are two main types of this model, 450 type and 630 type. 1.Fully automatic PLC control, single control or continuous operation 2.Large cutting opening and large blade length 3.Lower noise and smaller volume 4.High working speed, can up to8~12t/min
Teyun shredder machine for domestic waste is especiaaly desighed for processing the solid waste generated in people's daily life, mainly including household waste, such as: industrial waste paper, waste clothes, waste shoes, textiles, municipal waste, etc.
The semi-auto horizontal baler is mainly used for compressing and baling the soft materials such as waste cartons, waste plastics, beverage bottles, straw, straw, foam, wool and cashmere, coconut palm silk and so on.
The hydraulic scrap metal container shear machines are popular in the recycling industry, usually suitable for large steel and iron company,metal recycling and consruction compies.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Alligator shear is also called crocodile shear machine, which is usuallay used for cuuting the long metal stock or scrap in the metal recycling industry.
Aluminum extrusion auxiliary equipements including the cooling table, the heating furance, the puller, the aging furance and the mold oven. The puller has two types: single puller and the double puller.
Waste metal cutting machine for recycling The super alligator shear is also well known as the name of Tiger shear, which is mainly used in the waste metal recycling industry. The waste metal shearing machine cut the thin metal which is in the lager size or long lenth into the customized size. This cutting process can save the scrap metal storage space and the transports cost. The super alligator shear makes the metal recycling more easier. Tiger shears are suitable for scrap steel cutting, and have the advantages of large cutting opening and large blade length. There are three methods of chain plate transmission, hydraulic motor transmission, and cylinder push feeding. At the same time, the shearing speed is fast, which can reach 8~12 times per minute. There are two main types of this model, 450 type and 630 type. 1.Fully automatic PLC control, single control or continuous operation 2.Large cutting opening and large blade length 3.Lower noise and smaller volume 4.High working speed, can up to8~12t/min
Teyun shredder machine for domestic waste is especiaaly desighed for processing the solid waste generated in people's daily life, mainly including household waste, such as: industrial waste paper, waste clothes, waste shoes, textiles, municipal waste, etc.
The semi-auto horizontal baler is mainly used for compressing and baling the soft materials such as waste cartons, waste plastics, beverage bottles, straw, straw, foam, wool and cashmere, coconut palm silk and so on.
The hydraulic scrap metal container shear machines are popular in the recycling industry, usually suitable for large steel and iron company,metal recycling and consruction compies.
